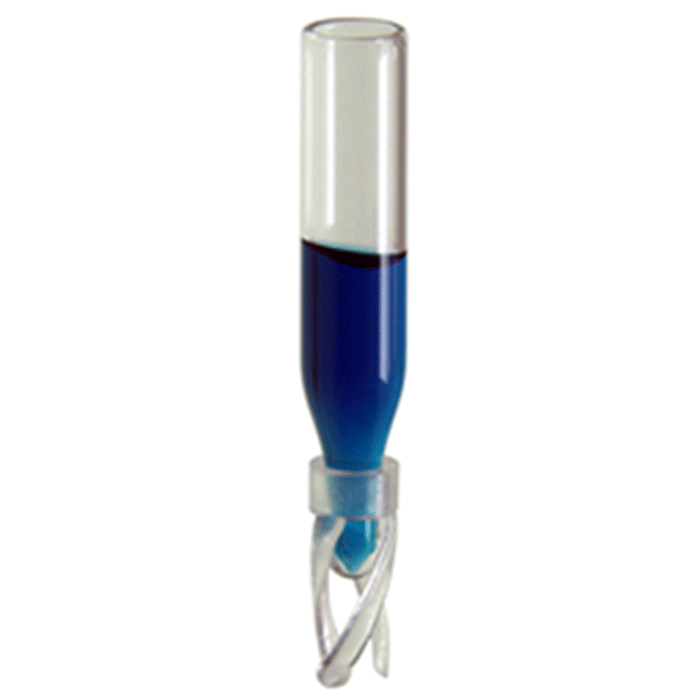

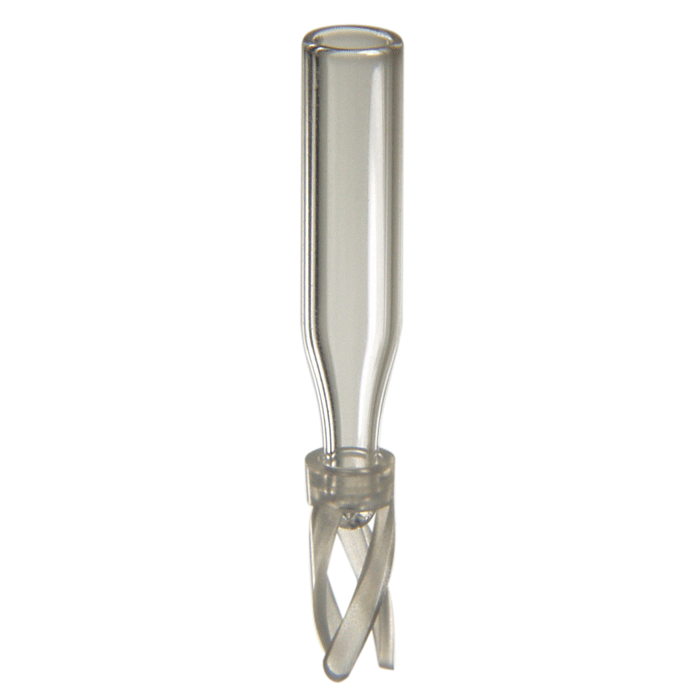

Inserts, Low Volume for Vials, Glass. Clear, 300ul fill volume with a conical, precision point and 6x29mm outer dimensions with plastic springs attached. For use in 2ml autosampler vials. RSA Brand. 100/PK.
Additional Info:
Maximize Sample Recovery with RSA™ Low Volume Inserts!
9502S‑02N‑RS inserts are engineered for high‑precision, low‑volume analysis where sample conservation and injection accuracy are critical. Manufactured from first hydrolytic, Class A, Type 33 borosilicate glass, these inserts deliver superior chemical resistance, extremely low extractables, and outstanding consistency.

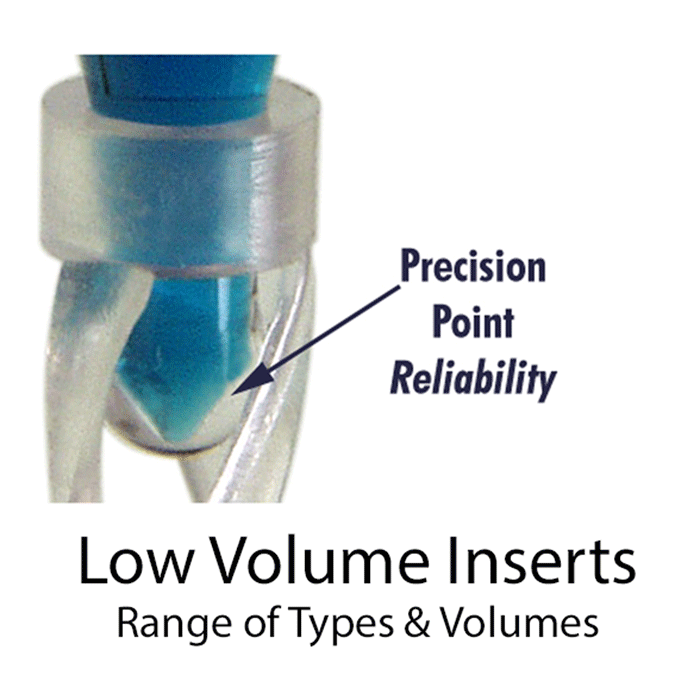

Each insert features a mandrel‑formed, precision conical tip that concentrates sample at the bottom, ensuring maximum recovery and reliable needle access. With a residual volume of approximately 2 µL (depending on autosampler), these inserts are optimized for efficient use of valuable or limited samples.
Why Choose RSA™ Reduced Surface Activity Glass?
Minimized Adsorption for Accurate Results The reduced surface activity (RSA™) treatment lowers interaction with basic compounds, reducing sample loss and improving reproducibility.
Ultra‑Low Extractables & Metal Content Designed for sensitive analyses, RSA™ glass minimizes contamination risks and virtually eliminates delamination.
Key Benefits
300 µL fill volume ✅ Ideal for low‑volume workflows
~200 µL usable volume ✅ Efficient sample utilization
~2 µL residual volume ✅ Maximum recovery
Precision conical tip ✅ Consistent needle access and reproducibility
Spring‑mounted design ✅ Keeps insert centered and stable
Reduced surface activity glass ✅ Minimizes adsorption of basic compounds
Type 33 borosilicate glass ✅ High chemical resistance and durability
Improved needle safety ✅ Reduces risk of insert breakage
Typical Applications
LC‑MS and LC‑MS/MS analysis
HPLC and UHPLC workflows
Pharmaceutical and bioanalytical testing
Environmental and food safety testing
Any low‑volume or high‑value sample analysis
Compatibility
Designed for 2 mL (12 × 32 mm) autosampler vials
Compatible with:
9 mm screw top caps
11 mm snap top caps
Performance & Design Notes
Mandrel‑formed tips ensure uniform geometry and consistent performance
Bottom depth and geometry QC‑controlled for optimal needle alignment
Spring attachment maintains centering and reduces breakage risk
Best‑in‑class design comparable to TruView™ style inserts
Important Notes
Ideal for limited or expensive samples requiring maximum recovery
Designed for high‑sensitivity workflows
Most popular RSA™ low‑volume insert configuration
Provides improved reproducibility across autosamplers
